UPA-UV-6000-HEPA-CG Vertical air purifying unit

Units specifically designed for cleaning and purification of indoor air, in any type of premises and especially in areas with high occupancy, also suitable for pharmaceutical and healthcare applications.

Features:

• Plug-fan type fans with EC technology.
• Efficient, adjustable and low noise level equipment.

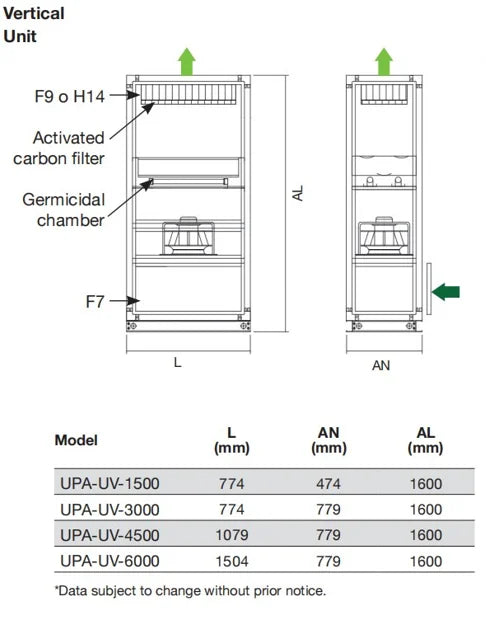

• Filtration stages according to model

First stage of F7 Filtering
Activated carbon filter.
Final filter F9
HEPA H14 final filter, 99.95% efficiency.
UVc germicidal chamber.

• Control panel with on/off and dirty filters indicator.
• Two speed selector.
• Germicidal chamber operation led indicator.
• Fully removable access door for cleaning and maintenance
• Insulated panels.

Motor

• High efficiency, external rotor, E.C. technology motors, incorporating constant flow regulation, with two, pre-adjustable set points.
• Single phase 200-230V ~50/60Hz.

Finish

• Frames made form aluminum section and 25mm insulated panels, pre-finished exterior, galvanized interior.

Options

• Drive Module 1 Front grille.
• Drive module with circular ducts.
• Equipped with wheels.

Options at extra cost

• Front outlet module may be added at time of purchase only.
• Circular outlet module may be added at time of purchase only.
• H14 HEPA filtration may be added at the time of purchase or at a later date.
• Overview
• • Airflow: 6,000m³/h
  • Filters: G4, Carbon, HEPA H14.
  • UVc Germicidal chamber
